16’x24’ Shed Plan with a Covered Patio.(PDF)
This barn plan offers a rustic style and a covered patio in front. Large sliding doors allow for easy access to equipment. A window and glass doors allow you to stay inside with a view. This makes it a practical garden shed, storage shed, or space to practice outdoor hobbies.
Building dimensions and elements:

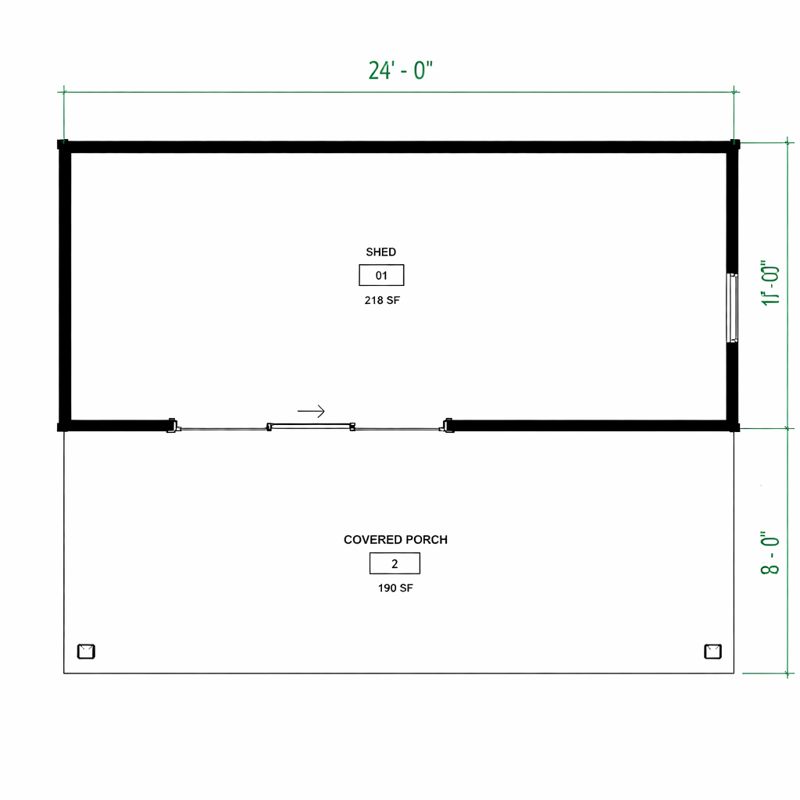

Width 16′-0”
Length 24′-0”
Height +/- 13′-5”
Roof Slope 11/12 and 3/12
Total 256 Sq/Ft
Wood frame construction : 2×4
Plans include:

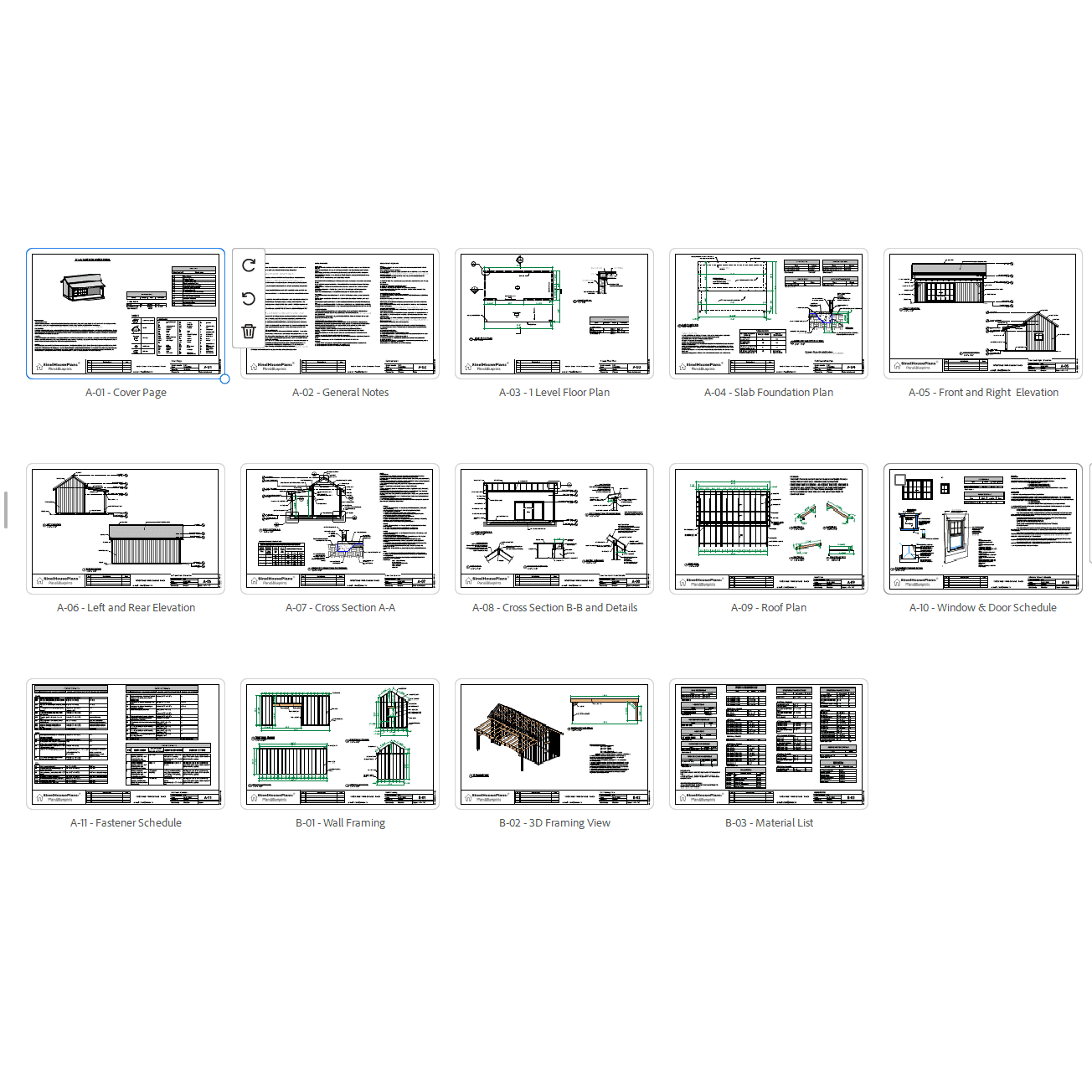

A-01 Cover Page
A-02 General Notes
A-03 1 Level Floor Plan
A-04 Slab Foundation Plan
A-05 Front and Right Elevation
A-06 Left and Rear Elevation
A-07 Cross Section A-A
A-08 Cross Section B-B and Details
A-09 Roof Plan
A-10 Window & Door Schedule
A-11 Fastener Schedule
B-01 Wall Framing
B-02 3D Framing View
Paper prints Size: 11×17 Horizontal
This is a downloadable PDF and can be printed out at home after purchase.
