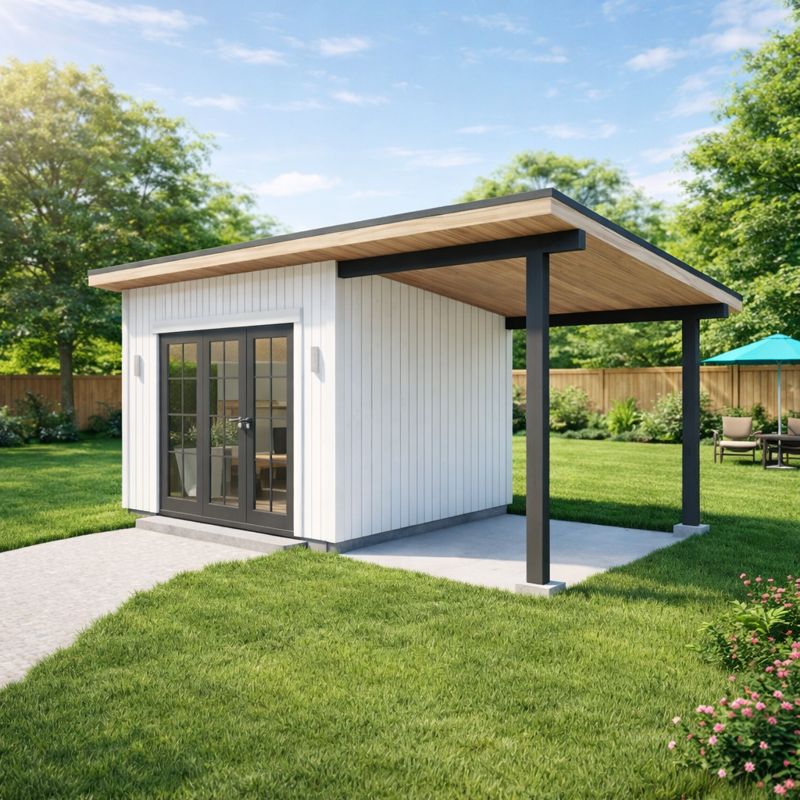

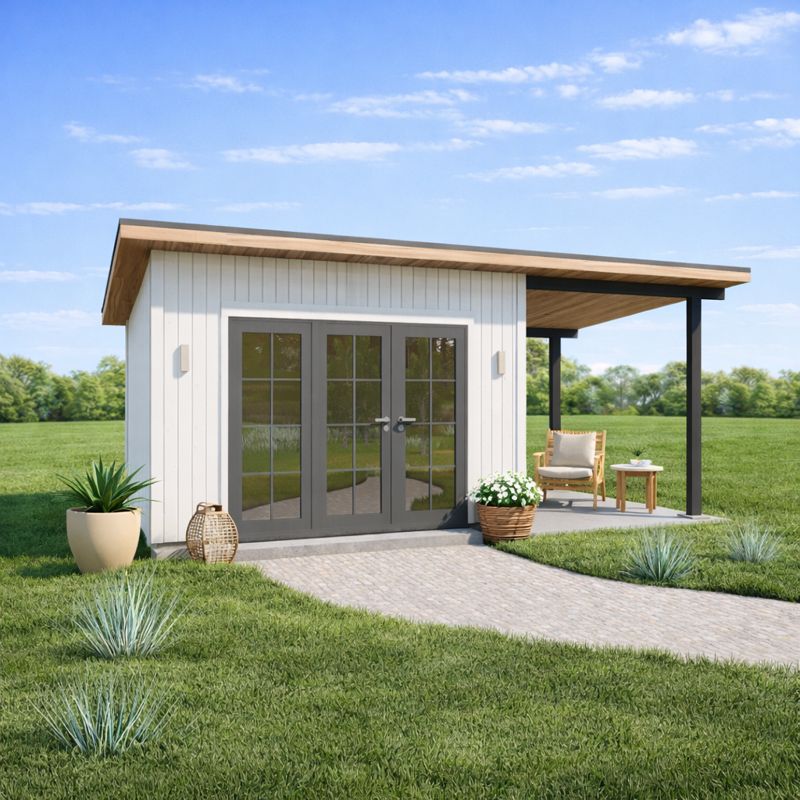

10’x20′ Modern Shed Plan with Porch.
A 10’x20′ Modern shed with porch in your backyard is a great idea to store your gardening tools or even an ATV without the shed dominating the space. If you are the organized type, we are sure that a shed has been on your mind for quite some time.
This model is very versatile and serves a variety of purposes.
Building dimensions and elements:
width 10′
length 20′
Height +/- 9′-9”
Roof Slope 2/12
Total 200 SQ/FT
Wood frame construction : 2×4

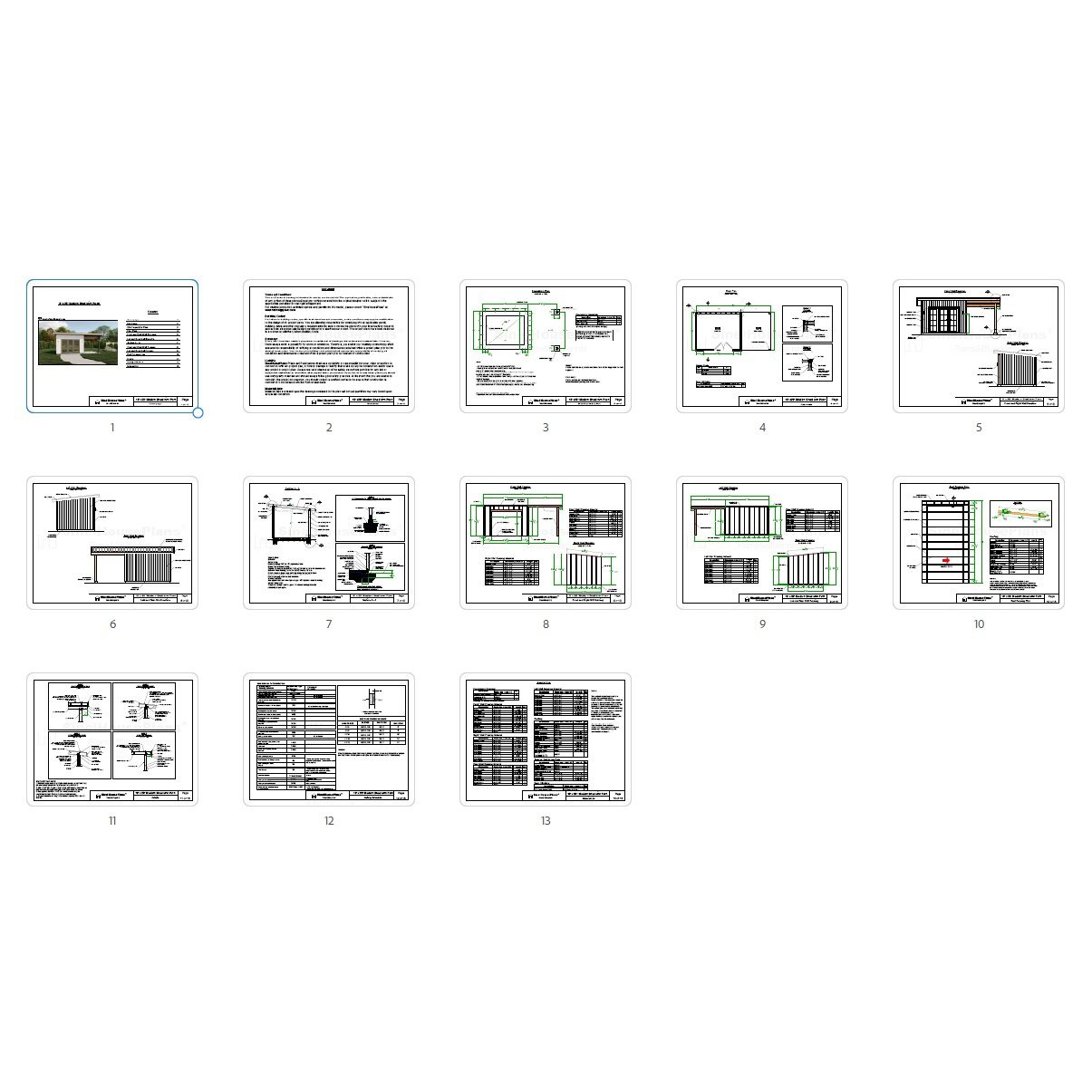

Plan includes:
Cover page
Disclaimer
Slab Foundation Plan

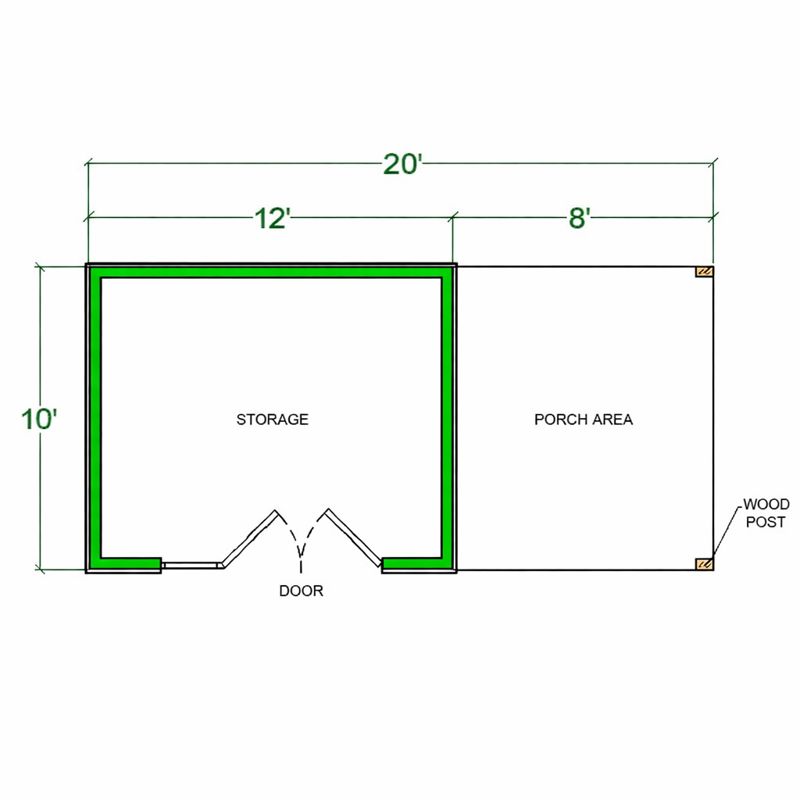

Floor Plan
Front and Right Wall Elevation
Left and Rear Wall Elevation
Section A – A
Front and Right Wall Framing
Left and Rear Wall Framing
Roof Framing Plan
Details
Nailing Schedule
Material List
This is a downloadable PDF and can be printed out at home after purchase.
Print paper sizes : 8.5 × 11 inches.
